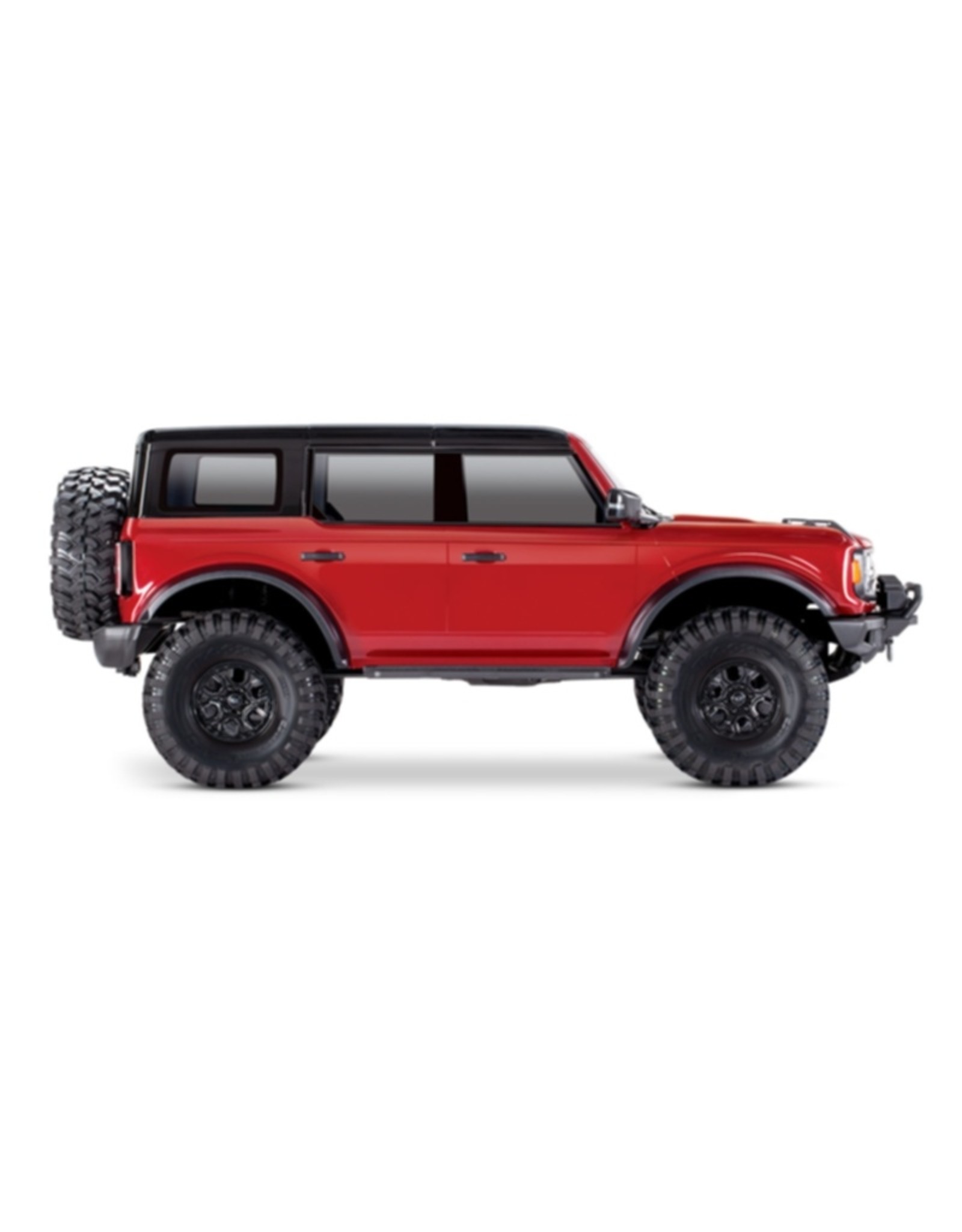

TRX-4 2021 Ford Bronco Exploded View
- Officially Licensed 2021 Ford® Bronco Body
- Two-tone paint with black roof and clear windows
- LED-ready headlights and tail lights with multi-function capability
- Scale details
- Black molded grille with white Bronco logo
- Replica hood cowl w/ wipers and folding mirrors
- Replica spare tire mount
- Replica door handles
- Tough PVC fender flares, wheel wells, and floor pans
- Front and rear Bronco bumpers with skid plate and replica winch
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan™ 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Replica black 2021 Bronco wheels
- Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12mm steel hex
- Transmitter
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
Model Specs
Model Name: |
TRX-4 2021 Bronco |
Model Type: |
Trail / Crawler |
Model Skill Level: |
1 |
Scale: |
1/10 |
Weight: |
6.42 pounds (2.91 kg) |
Length: |
22.98 inches (584 mm) |
Width: |
9.78 inches (249 mm) |
Front Track: |
9.78 inches (249 mm) |
Rear Track: |
9.78 inches (249 mm) |
Height: |
9.4 inches (239 mm) |
Wheelbase: |
12.8 inches (324 mm) |
Center Ground Clearance: |
3.14 inches (80 mm) |
Drivetrain: |
Shaft-driven 4WD |
Transmission: |
2-speed high/low, remote shifting |
Differential Type: |
4 gear, remote locking |
Gear Pitch: |
32 pitch |
Servo(s): |
2075X metal gear, digital high-torque waterproof |
Radio System: |
TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
Battery Compartment Specs: |
159 mm X 47 mm X 23 mm |
Motor Specs
Motor Name: |
Titan® 21T Reverse Rotation |
Motor Type: |
High-torque brushed motor |
Motor Weight: |
8.47 ounces (240 g) |
Motor Length: |
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
Motor Diameter: |
1.53 inches (39 mm) |
Motor Shaft Size: |
3 mm |
Motor Connector Type: |
Bullet |
ESC Specs
ESC Name: |
XL-5™ HV |
ESC Type: |
Brushed |
ESC Case Size: |
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
ESC Weight: |
2.60 ounces (74 g) |
Motor Connectors: |
Bullet |
Battery Connectors: |
Traxxas High-Current Connector |
ESC Power Wire: |
14 gauge |
