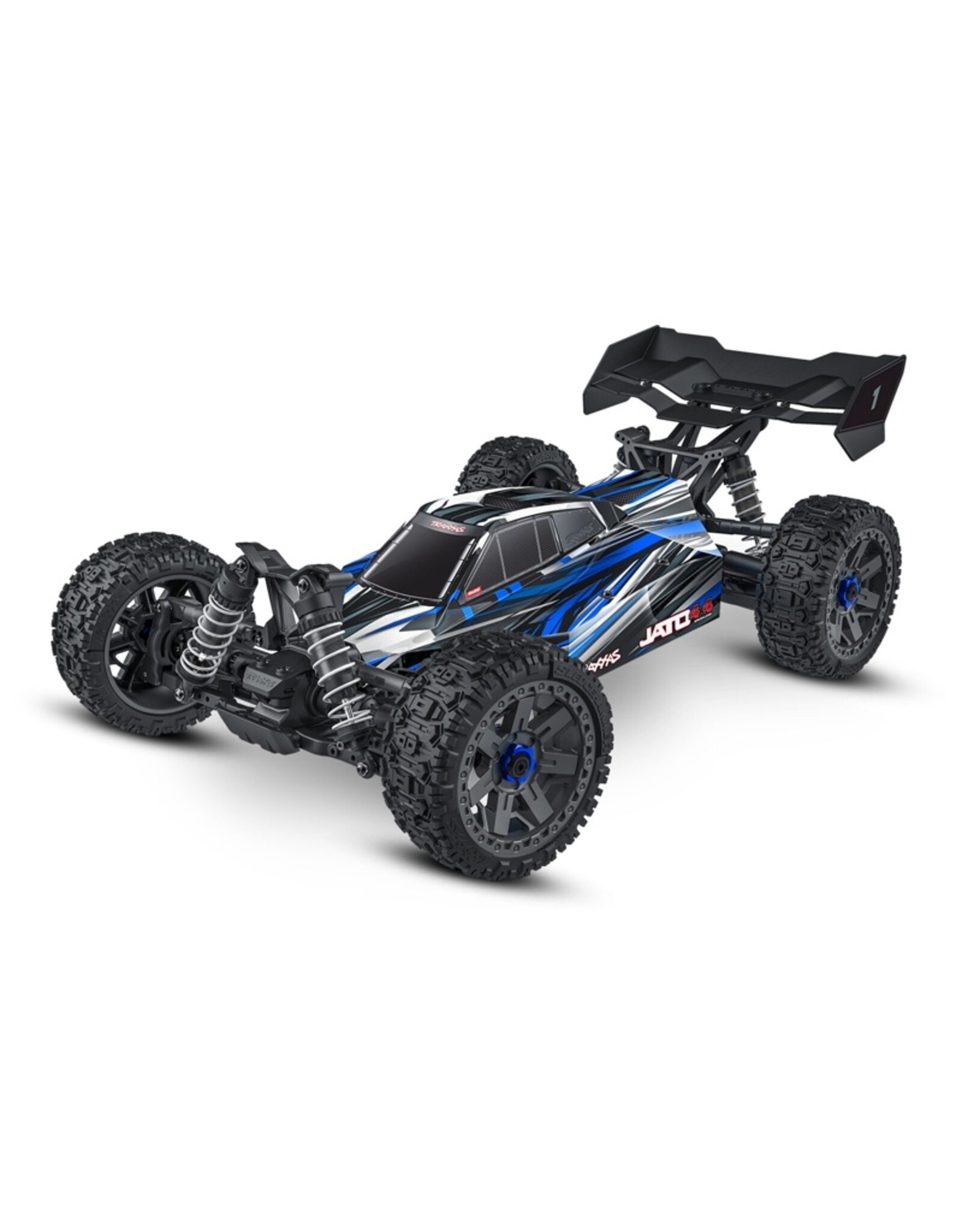

TRA90154-4 Jato 4X4 BL-2s BLUE
| Availability: | Out of stock |
- Clipless Body
- Holds tight for intense action
- Quick and easy removal
- High-downforce wing
- Extreme Heavy Duty Upgrade Kit Installed
- Oversize diameter
- 6 mm axles
- 17 mm hex hubs
- Aluminum wheel nuts
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Strengthened C-hubs, axle carriers, and steering blocks
- Heavy duty one-piece camber & toe links
- Maxx-duty driveshafts
- TQ™ 2.4 GHz Transmitter
- Steering
- BL-2s™ Waterproof Electronic Speed Control
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- Chassis
- T-Bar chassis stiffener
- Modular composite tub design
- Secure battery hold-down latch
- Low-CG design
- High-clearance skid plate
- Suspension
- Reinforced shock mounts
- Double-shear camber link connections
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- Heavy duty shock towers
- Heavy duty suspension arms
- Oil-filled GTR shocks
- White powder-coated springs
- Driveline
- Full-time shaft-driven 4-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch spur gear
- Heavy-duty slipper clutch
- Wheels and Tires
- 3″ gray buggy wheels
- 4.5″ Sledgehammer® tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL SPECS
| Model Type: | 1/8 scale buggy |
|---|---|
| Skill Level: | 1 |
| Length: | 20.4 inches (517 mm) |
| Width: | 12 inches (305 mm) |
| Height: | 7 inches (179 mm) |
| Weight: | 5.2 pounds (2.36 kg) |
| Wheelbase: | 12.6 inches (320 mm) |
| Front Track: | 12 inches (305 mm) |
| Rear Track: | 12 inches (305 mm) |
| Shock Length (front): | 3.98 inches (101 mm) - XX-long |
| Shock Length (rear): | 3.98 inches (101 mm) - XX-long |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
|---|---|
| Gear Pitch: | 32 |
| Overall Drive Ratio: | 12.80:1 |
| Drive System: | Shaft-driven 4WD |
| Steering: | Dual-bellcrank with integrated servo saver |
| Chassis Structure/Material: | Composite tub |
| Tires: | 4.53″ Sledgehammer® with foam inserts |
| Wheels (front/rear): | 3″ gray buggy wheels |
| Wheel Diameter: | 3″ inches (78 mm) |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof digital 2075 servo (125 oz-in torque) |
| Battery Compartment (L/W/H): | 165 mm x 50 mm x 23/26 mm |
MOTOR SPECS
| Motor Type: | BL-2s 3300 kV sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
