TRA67134-4 BIGFOOT 4X4 BL-2s
| Availability: | In stock (2) |
- Licensed BIGFOOT No. 8 Clipless Body
- Brilliant blue metallic officially licensed Ford® F-150® body
- Chrome front and rear bumpers
- Holds tight for intense action
- Quick and easy removal
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Extreme Heavy-Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Maxx-duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes

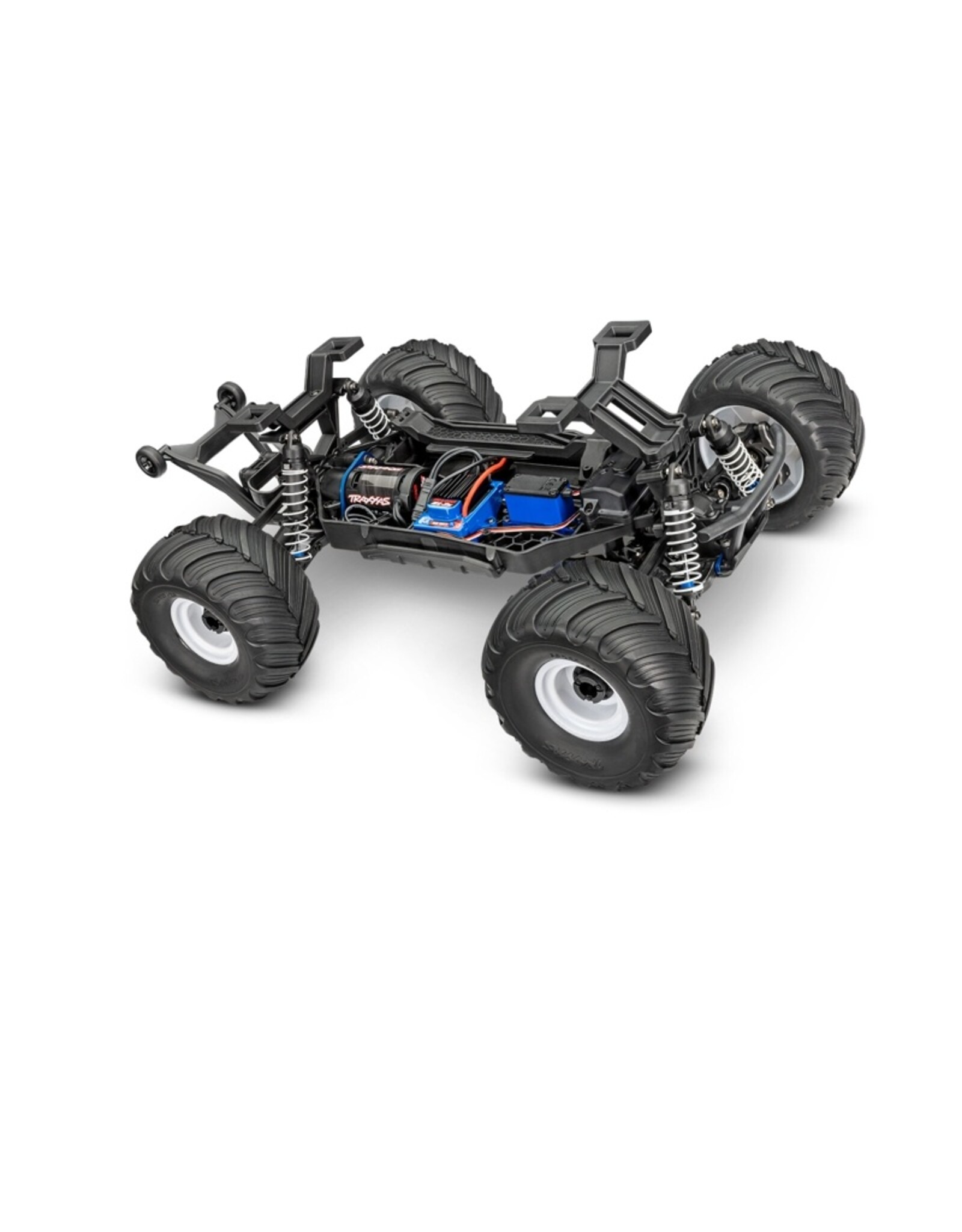

- Chassis
- Modular composite tub design
- Secure battery hold-down latch
- High angle bumpers
- 4-position adjustable wheelie bar
- Suspension
- HD-composite suspension arms
- Oil-filled Ultra Shocks
- White powder-coated springs
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Driveline
- Full-time shaft-driven four-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Wheels and Tires
- Dual-profile white monster truck wheels
- Replica military-style axle hubs
- Pre-glued high profile Terra Groove shaved monster truck tires with foam inserts
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL SPECS
| Model Name: | BIGFOOT 4X4 BL-2s |
|---|---|
| Model Type: | Monster Truck |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.98 pounds (2.7 kg) |
| Length: | 17.87 inches (454 mm) |
| Width: | 13.10 inches (333 mm) |
| Front Track: | 13.10 inches (333 mm) |
| Rear Track: | 13.10 inches (333 mm) |
| Height: | 8.34 inches (212 mm) |
| Wheelbase: | 11.62 inches (295 mm) |
|---|---|
| Center Ground Clearance: | 2.44 inches (62 mm) |
| Drive System: | Shaft-driven 4WD |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Ratio (Internal): | 15.36:1 |
| Gear Pitch: | 32 pitch |
| Servo(s): | 2075 digital high-torque waterproof |
| Radio System: | 2.4 GHz 2-channel radio |
| Battery Compartment Specs: | 162 mm X 50 mm X 26 mm |
MOTOR SPECS
| Motor Name: | BL-2s 3300 kV |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| Motor Connectors: | Traxxas Quick Connect Motor Plug |
| Battery Connectors: | Traxxas High-Current Connector |
