TRA64077-3 XO-1 AWD SUPERCAR NO BATTERY W/ TSM BLUEX
| Availability: | Out of stock |

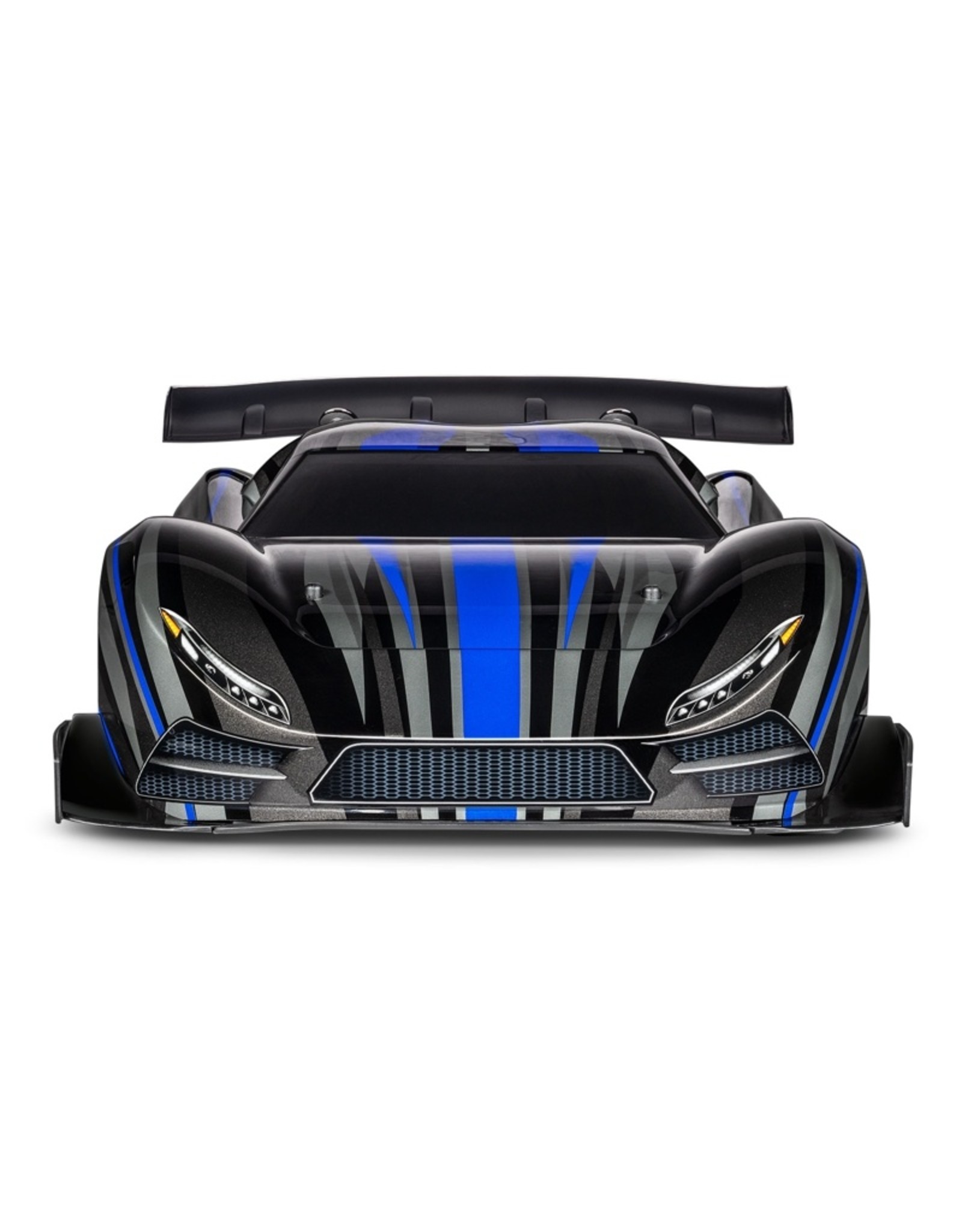

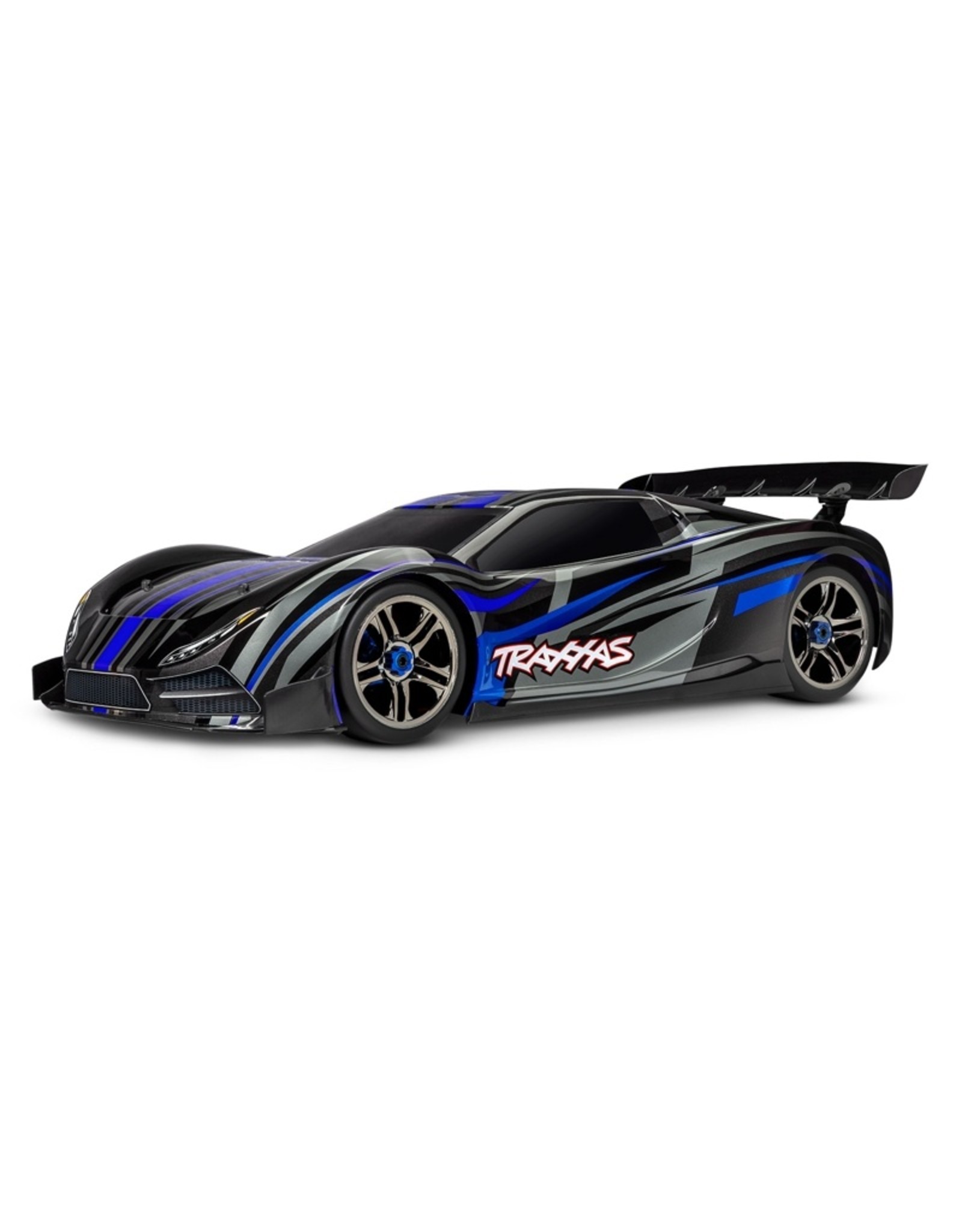

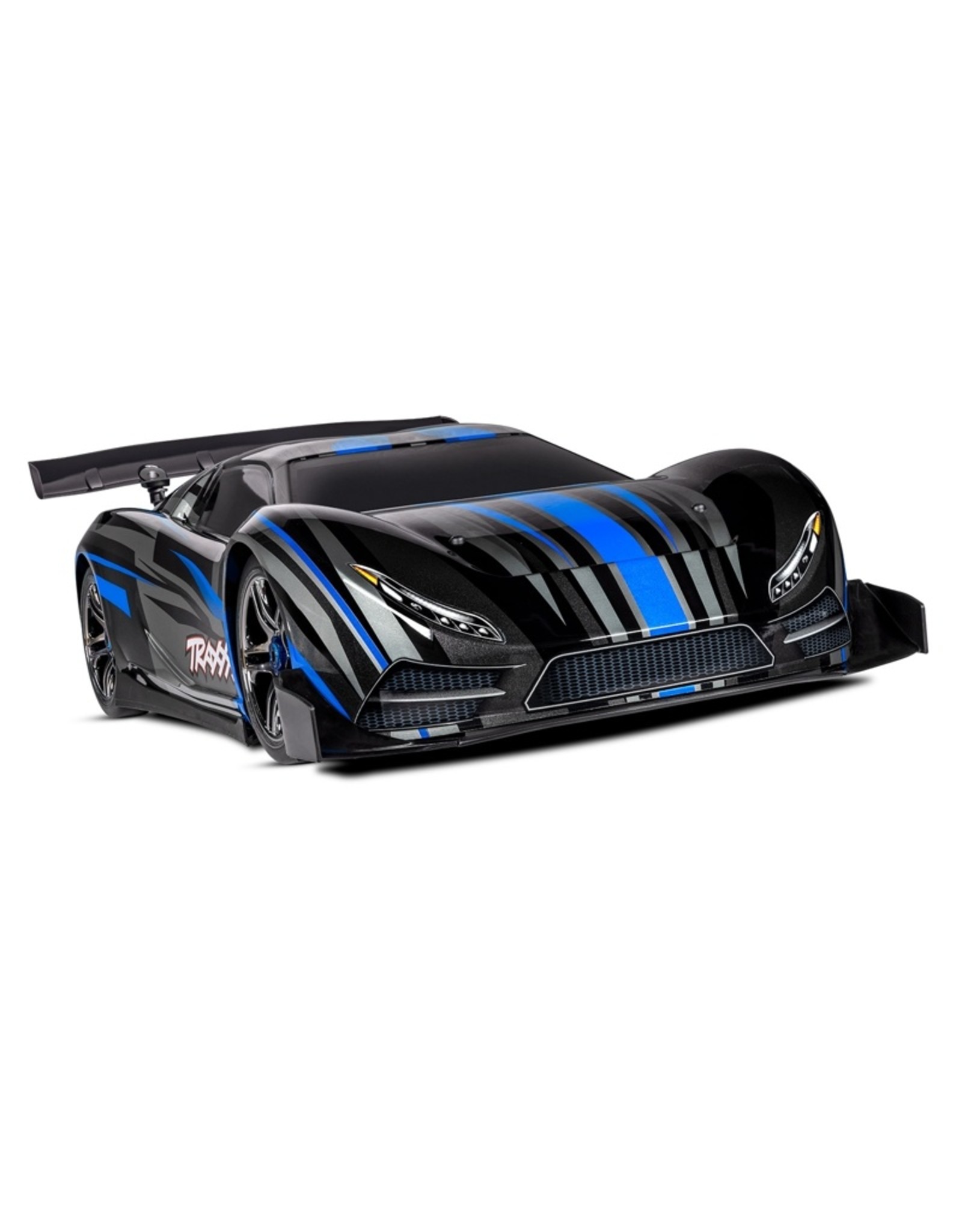

Features
- Computer-Optimized Supercar Body
- Large 1/7 scale size for increased stability
- Thick 1 mm polycarbonate body with high-impact ProGraphix® paint
- Functional aerodynamics
- New front splitter design with channels to hold the body in place
- High-downforce canards for high-speed stability
- New high-downforce rear wing for improved balance
- NACA motor cooling duct with rear hot air vent
- Rigid foam bumpers maintain body shape at speed
- Extreme Power System
- 100+mph capable with two 3s LiPo batteries and included accessories
- 0-60 mph in 2.3 seconds and 0-100 mph in 4.9 seconds
- Mamba Monster Extreme Power System by Castle Creations
- 6s LiPo capability
- Integrated capacitor bank
- Low-Voltage LiPo protection
- Traxxas Big Block 1717 brushless motor
- 1650 kV
- Finned can design for improved cooling
- Oversize premium bearings
- Largest motor ever fitted to a Ready-to-Race® RC on-road car
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking
- Never dulls throttle or slows the car
- Adjusts from off to 100% assistance from the transmitter

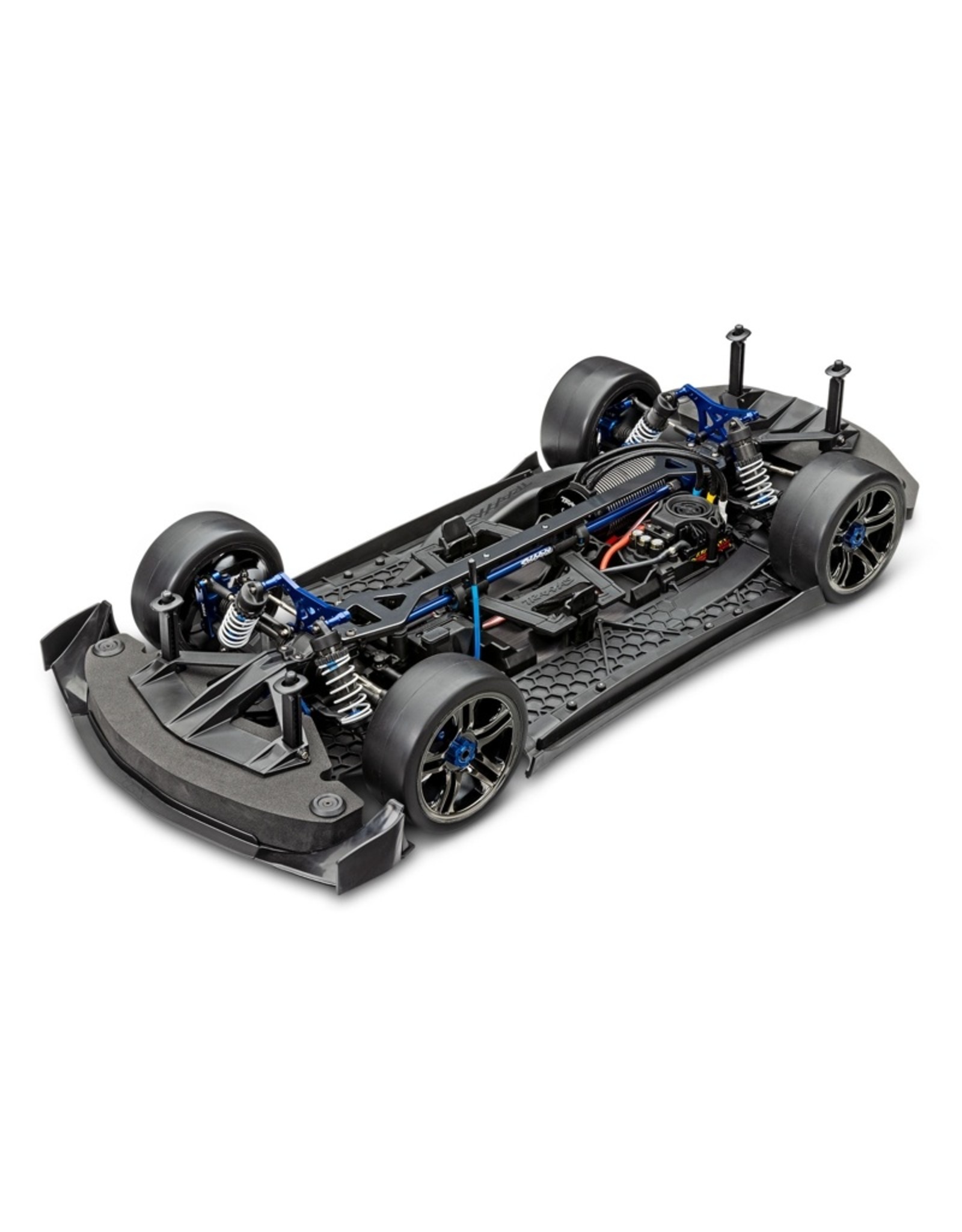

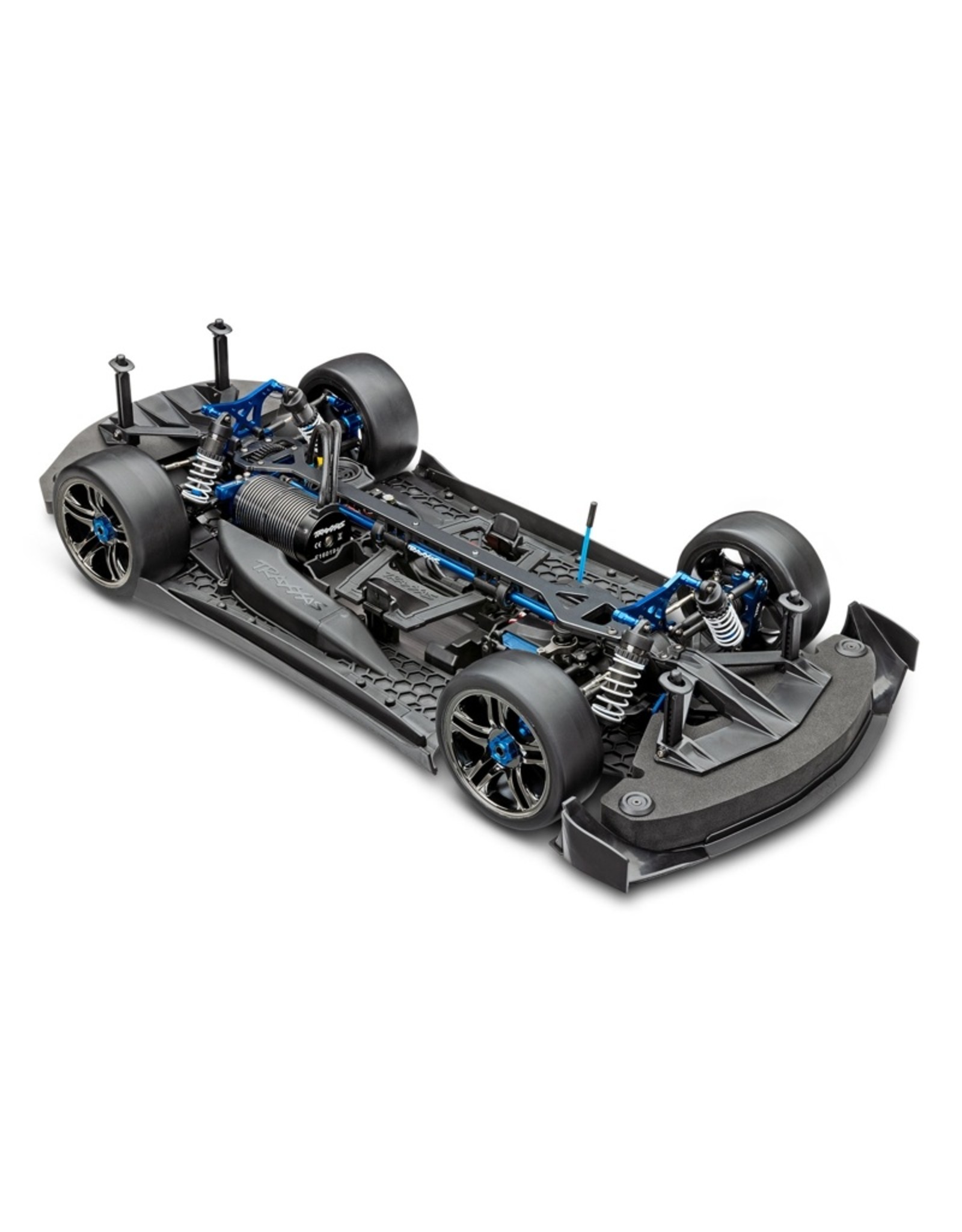

- Chassis
- 3 mm Dark titanium-anodized 6061-T6 aluminum upper and lower chassis plates
- Dual scalable snap-lock battery compartments
- Keys into front and rear bulkheads for completely smooth undertray
- TQi™ 2.4GHz High Output Radio System with Wireless Module
- Includes 6511 Traxxas Link Wireless Module
- TQi 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
- Installed telemetry sensors for real-time speed, RPM, and voltage data
- Steering
- Digital high-torque ball bearing 2075 servo
- Metal bellcrank with integrated cam-style servo saver
- Suspension
- Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
- White powder-coated performance-tuned springs
- Blue-anodized 6061-T6 aluminum caster blocks
- Blue-anodized 6061-T6 aluminum steering blocks
- Blue-anodized 6061-T6 aluminum axle carriers
- Blue-anodized 6061-T6 aluminum shock towers
- Heavy-duty 4 mm steel turnbuckles
- Impact-resistant heavy-duty suspension arms
- Drivetrain
- Machined aluminum motor mount
- Precise gear mesh settings
- Ultimate strength
- Efficient heat transfer
- Steel CV Driveshafts
- Oversize 6 mm axles
- Silicone dust boots
- Hardened steel shafts
- Extruded-aluminum center driveshaft
- Transmission
- Large Mod-1 pinion and spur gears
- Exclusive Cush Drive™ absorbs drivetrain shocks
- Differentials
- Sealed silicone-filled limited-slip design
- Heavy-duty reinforced carrier
- 5 mm output shafts
- Chassis
- 3 mm Dark titanium-anodized 6061-T6 aluminum upper and lower chassis plates
- Dual scalable snap-lock battery compartments
- Keys into front and rear bulkheads for completely smooth undertray
- Wheels and Tires
- Heavy-duty 17 mm splined blue-anodized aluminum hex hubs and wheel nuts
- 118+ mph-rated belted slick tires with contoured foam inserts
- Contoured, molded tire inserts
- Large 2.8” black chrome Split-Spoke wheels with keyed 17 mm hubs
- High-quality sealed ball bearings
- Precision Hex Hardware
- Hex hardware with rust-resistant black oxide coating
- Requires Battery and Charger (Sold Separately)
Model Specs
| Model Name: | XO-1 w/TSM |
|---|---|
| Model Type: | On-Road Cars |
| Model Speed: | 100+ mph |
| Model Skill Level: | 10 |
| Scale: | 1/7 |
| Weight: | 8.6 pounds (3.9 kg) |
| Length: | 27 inches (686 mm) |
| Width: | 13 inches (329 mm) |
| Front Track: | 11.81 inches (300 mm) |
| Rear Track: | 11.81 inches (300 mm) |
| Height: | 5 inches (128 mm) |
|---|---|
| Wheelbase: | 15.91 inches (404 mm) |
| Center Ground Clearance: | 0.59 inches (15 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single-speed |
| Differential Type: | Sealed hardened steel bevel |
| Gear Pitch: | Module 1.0 |
| Servo(s): | 2075 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver and 6511 Wireless Module |
| Battery Compartment Specs: | 155 mm X 50 mm X 29 mm |
Motor Specs
| Motor Name: | Traxxas Big Block |
|---|---|
| Motor Type: | 1650 kV sensorless brushless |
| Motor Weight: | 23.44 ounces (665 g) |
| Motor Length: | 3.5 inches (89 mm) |
| Motor Diameter: | 1.81 inches (46 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet |
ESC Specs
| ESC Name: | Castle Creations Mamba Monster Extreme ESC |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 6 mm W x 85 mm D x 43 mm H |
| ESC Weight: | 4.27 ounces (121 g) |
| Motor Connectors: | 6.5 mm bullet |
