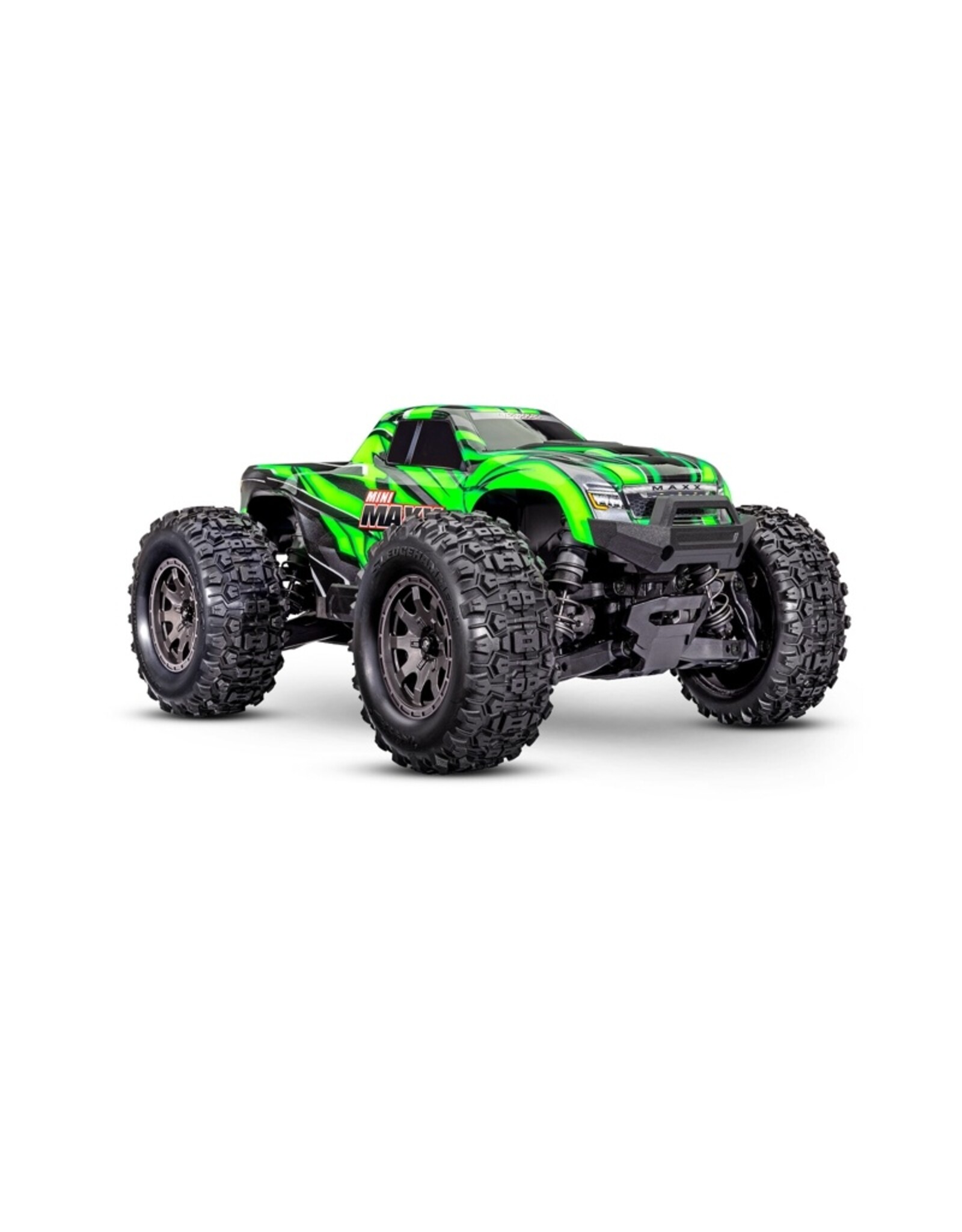

TRA107154-1 Mini Maxx BL-2s GRN

Availability:

Out of stock

• 30+ mph Top Speed
• BL-2s™ Waterproof Electronic Speed Control
  • Heat sink accepts accessory cooling fan (3340)
  • Three programmable drive profiles
    • Sport Mode - forward / brake / reverse
    • Race Mode - forward / brake
    • Training Mode™ - 50% forward / brake / 50% reverse
  • Traxxas EZ-Set^® one-button setup
  • Built-in two-stage low-voltage detection
• BL-2s™ Brushless Motor
  • Integrated cooling fan
  • Low-maintenance design
  • Efficient ball bearings
  • 3300 Kv
• Battery and Charger Included
  • High-capacity 2-cell LiPo battery
    • 7.4 volts
    • 3500 mAh for extended run time
  • 2-amp USB-C charger
  • iD^® technology for faster, safer charging

• TQ™ 2.4 GHz Transmitter
• Full-size 2-channel transmitter
• All-day comfort with precise long-range control
• Clipless Body Mount System
• Quick and easy installation and removal
• Nerf bar channels for side body support
• Reinforced for extra protection against tearing
• 1/10 Scale 4X4 Drivetrain
• Full-time shaft-driven 4-wheel drive
• 1/10 scale extreme-duty telescoping driveshafts
• Direct drive (no transmission)
• Fixed gear mesh system
• Large 32-pitch gears
• Sealed planetary steel-gear differentials
• Fixed gear mesh system
• Modular Composite Chassis
• Modular chassis with interlocking front and rear bulkheads
• Absorbs and distributes impact energy
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt
• Easy Battery Access
• Battery is protected deep in the chassis
• Battery hold-down pivots for easy access
• More secure than conventional retention systems

• Steering
• 1/10 scale 2056 waterproof high-torque servo
• Heavy-duty double-shear bellcranks
• Cam-style servo saver
• Suspension
• Heavy duty, double-shear suspension arms
• Dual wishbone design
• Extra tough outer suspension components
• Oil-Filled Ultra Shocks™
• Full size 1/10 scale shocks
• Large oil capacity
• Easy to tune
• Bumpers and Skid Plates
• Tough energy absorbing bumpers
• High-angle front skid plate
• Rugged interlocking skid plates
• Smooth undertray eliminates snags
• Integrated nerf bars for side impact resistance
• Wheels and Tires
• 2.4″ black multi-spoke wheels
• 4″ Sledgehammer^® tires with foam inserts
• Wide treadblock design
• Multiple layers of biting edges
• Hex Hardware with Rust-Resistant Black Oxide Coating
• Sealed Ball Bearings

MODEL SPECS

Model Name:	Mini Maxx
Model Type:	Monster Truck
Top Speed:	30+
Skill Level:	1
Scale:	Maxx
Length:	13.58 inches (345 mm)
Width:	9.94 inches (253 mm)
Height:	5.39 inches (137 mm)
Weight:	3.62 pounds (1.64 kg)
Front Track:	9.94 inches (253 mm)
Rear Track:	9.94 inches (253 mm)

Wheelbase:	8.66 inches (220 mm)
Ground Clearance:	1.06 inches (27 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Direct drive
Differential Type:	Planetary, steel gear
Overall Drive Ratio:	9.20:1
Gear Pitch:	32
Servo:	2056
Radio System:	TQ 2.4 GHz (2-channel)
Battery Compartment Specs:	113 mm L x 41 mm W x 22 mm H

MOTOR SPECS

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
BEC Voltage:	6 volts
Thermal Protection:	Two-stage thermal shutdown
Ports:	Auxiliary fan
Battery Connector:	Traxxas High-Current Connector
