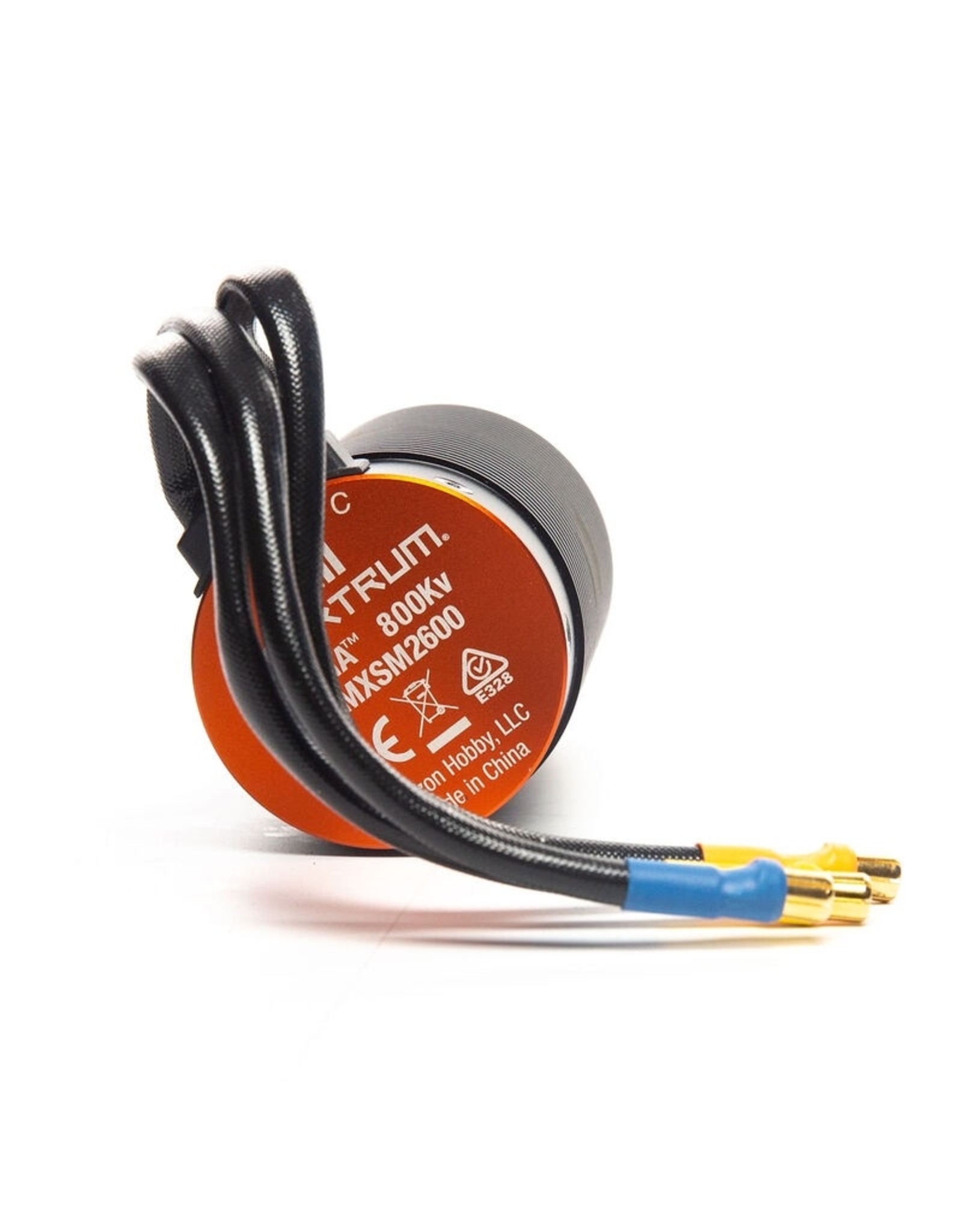

SPMXSM2600 Firma 56111 800Kv 4-Pole Brushless Motor: 8mm
| Availability: | In stock (1) |
Overview
The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.
Features
- Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
- High efficiency design
- 8S LiPo power capable
- High-quality 4-pole sintered rotor
- 6.5mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 8mm shaft
- Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
Product Specifications
| Motor Design | Inrunner |
| Adjustable Timing | No |
| Integrated ESC | No |
| Connector Wire Length | 7.48" (190 mm) |
| Outer Diameter | 2.2" (56 mm) |
| Maximum Continuous Current | 110A |
| Constant Wattage | 3000W or more |
| RPM/Volt (Kv) | 12,475 / 15V |
| Sensor Type | Sensordless |
| Shaft Length | 0.867" (22 mm) |
| Input Voltage | 11.1 - 29.6V (3 - 8S) |
| Kv Rating | 750-999Kv |
| Motor Output Lead | 6.5 |
| Recommended Speed Control | Spektrum Firma 160A Brushless Smart |
| Bushing Or Bearing | Bearing |
| Application | Arrma Roller Kits |
| Number of Poles | 4 |
| Product Weight | 39.86oz (1130g) |
| Resistance | .0049 ohms |
| Shaft Diameter | 0.3" (8 mm) |
| Connector Type | 6.5mm Bullet |
| Efficiency | 87% |
| Motor Class | 1/5 Scale |
| Motor Size | 5611 |
| Product Length | 4.4" (112 mm) |
